Laygear thrust shim - 0.005" (0.127mm)
GW-LGT005


  Gearboxes
  New Parts
     Kits
     Bearings
     Upgrades
     Gears
     Automatic
  Used Parts
  Tools
  Bottletop Racing

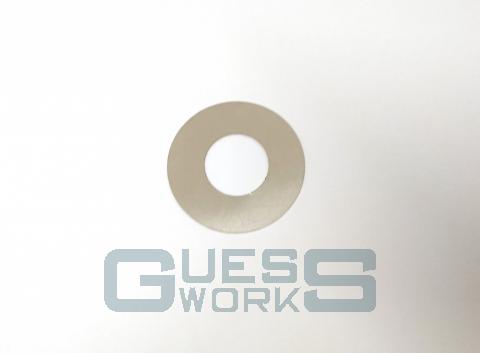

GUESSWORKS own laygear thrust shim. As the larger sizes of the laygear thrusts for A series and A+ 4 synchro boxes reduces, a solution is to put a shim between the larger laygear thrust 22G860 and the case.

This is a single 0.005" (0.127mm) shim.

Laygear small thrust part numbers for reference

22G856 - 0.123" - 0.124" (3.12-3.14mm)
22G857 - 0.125" - 0.126" (3.17-3.20mm)
22G858 - 0.127" - 0.128" (3.22-3.25mm)
22G859 - 0.130" - 0.131" (3.30-3.32mm)

DAM3180 - 0.121” - 0.123” (3.07-3.12mm)
DAM3181 - 0.124” - 0.126” (3.10-3.20mm)
DAM3182 - 0.127” - 0.129” (3.22-3.27mm)
DAM3183 - 0.130” - 0.132” (3.30-3.35mm)

£ 1.00
(£ 1.20)


Note these are on pre-order and may not be immediately available
