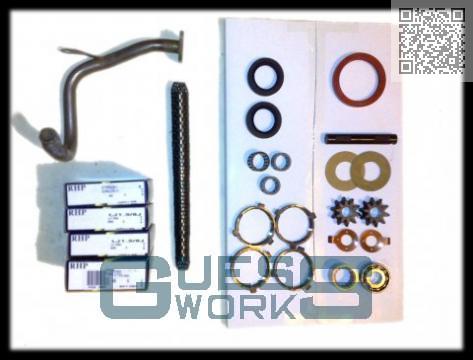

Kit includes (part numbers provided as a guide)

• 13H2934 x 1 - CLUTCH OIL SEAL (ORANGE)
• 13H7848 x 1 - Idler gear bearing
• 88G396 x 1 - A series layshaft needle roller bearing
• 22G2033 x 4 - BAULK RING
• 22G2262 x 6 - SYNCHRO SPRING
• 31B447 x 1 - SEAL UNDER ROD CHANGE SELECTORS TO GEAR CASE
• AAU1365 x 1 - ROLLER DOUBLE FOR MAINSHAFT IN GEARBOX
• AAU8424 x 1 - ROLLER 1st MOTION SHAFT PILOT TO CLUTCH CASE
• ADU5738 x 2 - DIFF OUTPUT SHAFT OIL SEAL
• ADU7619 x 1 - ROLLER SINGLE TYPE FOR HOLDING 1ST MOTION SHAFT
• AHU1856 x 2 - DIFFERENTIAL ROLLER
• AJM804B x 1 - GEARBOX GASKET SET
• BLS107 x 6 - SYNCHRO BALLS
• BTA101 x 2 - DIFFERENTIAL THRUST WASHER STANDARD SIZE
• C-22A1738 x 1 - LAYSHAFT A Series performance
• C-AHT54 x 1 - OIL PIPE HITECH CENTRAL PICKUP GEARBOX
• C-BTA164 x 1 - DIFFERENTIAL PIN WITH MOLYBDENUM COATING
• CCN110 x 1 - PILOT BEARING CIRCLIP
• CDU1563 x 1 - O ring seal for aluminium bush selector shaft
• CHM141 x 2 - LAYSHAFT LARGE ROLLER
• CHM172 x 1 - 3RD MOTION NOSE BEARING
• DAM5071 x 2 - WASHER THRUST FOR PLANET GEAR
• DAM6624 x 2 - PLANET GEAR
• GHF221 x 1 - 1/4" UNF Nyloc nut
• GHF223 x 1 - 3/8" UNF Nyloc nut

£ 325.00 (£ 390.00)
